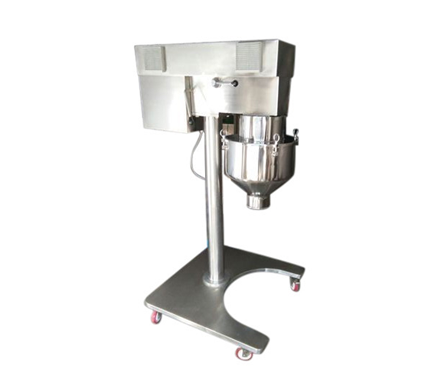

Multi Mill

We are the leading Multi Mill Manufacturers in India. Our machines are highly regarded by our clients for their quality and durability. For wet and dry granulation, pulverization, pharmaceuticals, colours, dyes, pesticides and other manufacturing process, the use of multi-mill is quite prevalent. Based on the mechanics of variable force swing, different verticals can use the Multi Mill as per their varying need.

Our Multi Mills come with easy to detach and clean specifications. With the use of cylindrical wheel, we optimize the output and use of specific planned wheels at the base ensure quick mobility. Our products undergo international standardization and we adhere to the quality compliances for best products availability, therefore we are a celebrated Multi Mill manufacturer in India. Our team is ably equipped to customise the Multi Mill according to your requirements to serve you the best.

Multi Mill Manufacturers

Salient Features :

Direction of beaters can be changed by reversible switch.
All contact parts can be easily and quickly dismantled and cleaned.
Machine is designed for continuous operation.
Cylindrical screen for higher output Castor wheels provided for mobility.
Use PU Caster Wheels_Sillicon Gasket.
Flameproof electrical components can be provided at extra cost.
Beaters and scrapper blades of S.S. 316 quality.
We Make Lab Multi Mill, Direct Driven Multi Mill_Belt Driven Multi Mill


S. S. Screens :

0.5, 1.0, 1.5 mm Hole Dia.
2, 3, 4, 5, 6 mm Hole Dia.
7, 8, 10, 15, 20, 25 mm Hole Dia.

S. S. Wire Mesh Sieve :

4, 6, 8, 10, 12, 14, 16, 20, 24, 30, 40, 50, 40, 50, 60 Mesh


Technical Specifications
Output 50 to 300 Kgs./Hr.
Rotor Assembly Diameter 250 mm. Approx.
Rotor Speed 750 / 1500 / 2300 / 3000 RPM
Beaters 12 Nos. with knife and impact edges and 2 Nos. scrapper blades Screen dimension
Inner Diameter 265 mm./ Height 140 mm
Motor 3 HP. / 1440 RPM
Material charging height 1460 ± 5 mm
Material discharging height 760 ± 5 mm
