Rapid Mixer Granulator (RMG)

A widely used equipment in the pharmaceutical industry, Rapid Mixer Granulator (RMG) is mainly used for mixing pharmaceutical ingredients and converting them into granules before compression.

Components

The device makes use of impellers and choppers which are responsible for wet granulation.

Impellers

Impellers are the set of two long blades and short blades fixed at the bottom of the dome shaped stainless steel Granulator. While the small blades are used to lift the material, long blades are responsible for mixing it all well. The wet mass is then broke down into small pieces and granules by impellers.

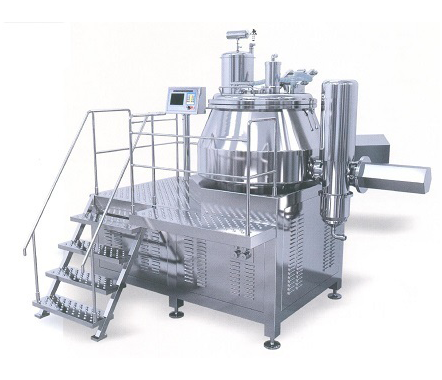

Rapid Mixer Granulator

Chopper

Choppers are the small fine blades which are run at high speed RPM to convert wet mass into uniform size granules. The speed of the chopper affects the size of the granules.

Discharge Port

Discharge Port is located at the bottom of the granular. Once the wet mass is converted into fine granules, they are collected into a container through discharge port which is controlled by compressed air regulated cylinder.

Mounting

The whole assembly is mounted on a stainless steel platform provided with staircase and railings. The entire body is covered from the sides with suitable stainless steel covers.

Safety Features :

Locking arrangement for motor to eliminate accidently starting with open lid.
Enclosed moving parts.

GROSS VOLUME(LTRS) WORKING VOLUME (LTRS) MAIN MOTOR GEAR BOX CHOPPER MOTOR DISCHARGE HEIGHT SPACE REQUIRED
25 20 3/5 4" 1.5/2 600 650 X 1200 X 1250
100 80 7.5/15 5" 2/3 780 1500 X 2200 X 2150
150 120 7.5/15 5" 3/5 780 1800 X 2500 X 2300
250 200 25/30 7" 3/5 1050 2000 X 2800 X 2500
400 320 30/40 8" 5/7.5 1200 2500 X 3000 X 3000
600 480 40/50 10" 5/7.5 1200 2700 X 3200 X 3000
1000 600 63/85 12" 10/15 1200 2900 X 2900 X 3200
